AIM Series — Axial Small Ball Joints

AIM Series
Axial Ball Joints

Metric Thread · Axial Pull-Out Loading · Zinc-Plated Carbon Steel Socket · Hardened Steel Ball

8

Полный диапазон спецификаций

30-100 N

Pull-Out Force Range

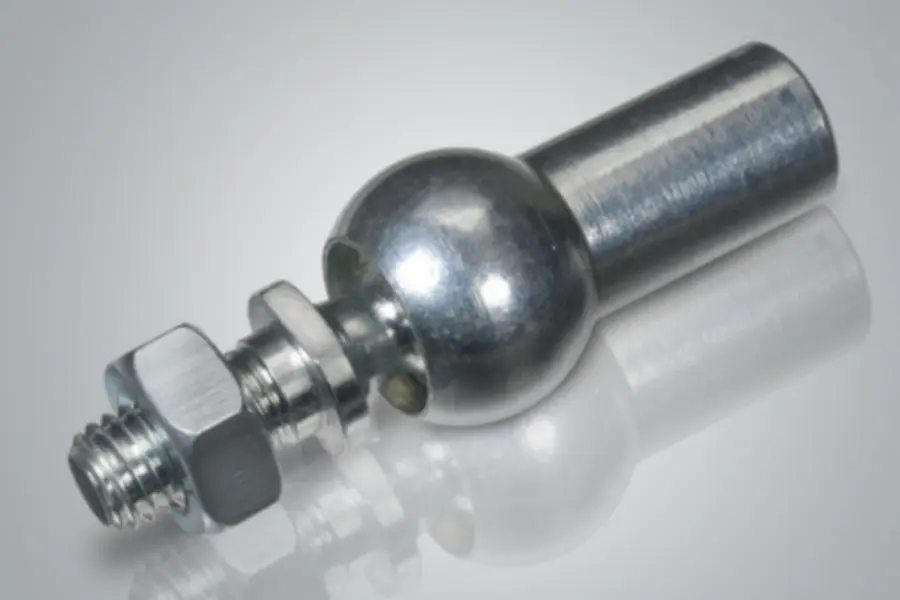

AIM axial ball joint product overview

AIM axial ball joint technical drawing

Любой B

Любой N

Резьба d2

Шарик d1

Полиуретан

Полиуретан	Шарик d1MM	Резьба d2METRIC	a±0.3	d3±0.5	d4±0.5	e мин.MM	l2±0.3	l3±0.3	SWh14	Pull-Out FN	Наружная
AIM5	8	M5	22	8	12.8	10.2	10.2	9	7	30
AIM6	10	M6	25	10	14.8	11.5	12.5	11	8	40
AIM8	13	M8	30	13	19.3	14	16.5	13	11	60
AIM10	16	M10	35	16	24	15.5	20	16	13	80
AIM12	16	M12	35	16	24	15.5	20	16	13	80
AIM14×1.5	19	M14x1.5	45	22	30	21.5	28	20	16	100
AIM14	19	M14	45	22	30	21.5	28	20	16	100
AIM16	19	M16	45	22	30	21.5	28	20	16	100

Обойма:

Socket: Carbon steel, tensile strength class 5, zinc plated and colorless passivated.
Литьевой, армированный нейлон с PTFE. Hardened steel with lubricated ball seat for compact axial articulation.
Stainless option: Stainless steel version available for corrosion-sensitive applications.
Tolerances: a ±0.3 · d3 ±0.5 · d4 ±0.5 · l2 ±0.3 · l3 ±0.3.

Примечания

Axial layout: AIM is intended for compact axial ball-joint linkage points where pull-out force and packaging size matter.
Thread choice: Match thread d2 and ball diameter d1 to the mating linkage and housing space.
RFQ support: Send target load, mounting direction, finish preference, and annual quantity for selection confirmation.

🍪
