Hydraulic-Cylinder Linkages
Use the published HCR12CE dimensions and mounting geometry to review cylinder-side linkage fit.
Size 90 / M72x3 thread / 185 mm outer diameter / 296 mm lengthROD END / HEIM JOINT

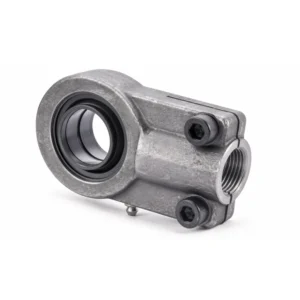

HCR12CE-90 Hydraulic Rod End Bearing, 90 mm Size
Part No.: HCR12CE-90
· Male & female version available
✓ ISO 9001 Certified
✓ SGS Verified
✓ 26+ Years Factory
✓ OEM / ODM Ready
Size 90 mm
Thread pitch M72x3
Diameter 100 mm
Dynamic load 490 kN
Static load 750 kN
Tilt angle 4°
Bearing Shell
100cr6 / aisi 52100 bearing steel, hardened and ground; phosphate and molybdenum-disulfide surface treatment
Inner Ring
100cr6 / aisi 52100 bearing steel, hardened and ground; phosphate and molybdenum-disulfide surface treatment
⚡ Typically responds within 24 hours
MOQ:50 pcs / model
Lead Time:7–15 days
Sample:Free (excl. freight)
Payment:T/T · PayPal · L/C
Overview
Hydraulic Rod End Bearing HCR12CE Product Overview
HCR12CE-90 is a metric hydraulic-cylinder rod end bearing for larger cylinder-side linkage assemblies. It combines a GS400 nodular cast iron housing with a bearing shell and inner ring made from 100Cr6 / AISI 52100 bearing steel, hardened and ground; phosphate and molybdenum-disulfide surface treatment. It uses a right-hand M72x3 thread.
The size-90 configuration has a 185 mm outer diameter, 90 mm inner ring width, 72 mm bearing width, 195 mm medium length, 100 mm diameter, 91 mm thread length, 296 mm overall length. Published performance values are 55-142 μm internal clearance, 490 kN dynamic load rating, 750 kN static load rating, 160 mm collar diameter, 4° tilt angle, 410 Nm torque, and approximately 19100 g weight.
Hydraulic grease nipple to DIN 71412. The stated operating range is -50°C to +150°C. Confirm the cylinder geometry, side-load condition, clearance, lubrication access, and final material requirements against the HCR12CE specification before production release.
Size Chart
Hydraulic Rod End Bearing HCR12CE Series — Full Size Range
All available sizes in the Hydraulic Rod End Bearing HCR12CE series. Can’t find your size? Contact us for custom dimensions.
| Part no. | [D] Size | [G] Thread pitch | [A] Outer diameter (mm) | [B] Inner ring width (mm) | [M] Bearing width (mm) | [F] Medium length (mm) | [J] Diameter (mm) | [GL] Thread length (mm) | [L] Length (mm) | Internal clearance (μm) | [M1] Width (mm) | Dynamic load rating (kN) | Static load rating (kN) | [K] Collar diameter (mm) | Tilt angle (°) | Torque (Nm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HCR12CE-12 | 12 | M12x1,25 | 32 | 12 | 11 | 38 | 16 | 17 | 54 | 23-68 | 15 | 10.8 | 24.5 | 32 | 4 | 6 | 110 |
| HCR12CE-16 | 16 | M14x1,5 | 40 | 16 | 13 | 44 | 21 | 19 | 64 | 30-82 | 15 | 17.6 | 36.5 | 40 | 4 | 10 | 200 |
| HCR12CE-20 | 20 | M16x1,5 | 47 | 20 | 17 | 52 | 25 | 23 | 77 | 30-82 | 19 | 30 | 48 | 47 | 4 | 25 | 350 |
| HCR12CE-25 | 25 | M20x1,5 | 58 | 25 | 22 | 65 | 30 | 29 | 96 | 37-100 | 19 | 48 | 78 | 54 | 4 | 25 | 620 |
| HCR12CE-32 | 32 | M27x2 | 71 | 32 | 28 | 80 | 38 | 37 | 118 | 37-100 | 22 | 67 | 114 | 66 | 4 | 49 | 1150 |
| HCR12CE-40 | 40 | M33x2 | 90 | 40 | 33 | 97 | 47 | 46 | 146 | 43-120 | 26 | 100 | 204 | 80 | 4 | 49 | 2180 |
| HCR12CE-50 | 50 | M42x2 | 109 | 50 | 41 | 120 | 58 | 57 | 179 | 43-120 | 32 | 156 | 310 | 96 | 4 | 86 | 3960 |
| HCR12CE-63 | 63 | M48x2 | 136 | 63 | 53 | 140 | 70 | 64 | 213 | 55-142 | 38 | 255 | 430 | 114 | 4 | 210 | 6800 |
| HCR12CE-70 | 70 | M56x2 | 155 | 70 | 57 | 160 | 80 | 76 | 245 | 55-142 | 42 | 315 | 540 | 135 | 4 | 210 | 9600 |
| HCR12CE-80 | 80 | M64x3 | 170 | 80 | 67 | 180 | 90 | 86 | 270 | 55-142 | 48 | 400 | 695 | 148 | 4 | 410 | 13000 |
| HCR12CE-90 | 90 | M72x3 | 185 | 90 | 72 | 195 | 100 | 91 | 296 | 55-142 | 52 | 490 | 750 | 160 | 4 | 410 | 19100 |
| HCR12CE-100 | 100 | M80x3 | 211 | 100 | 85 | 210 | 110 | 96 | 322 | 65-165 | 62 | 610 | 1060 | 178 | 4 | 710 | 25000 |
| HCR12CE-110 | 110 | M90x3 | 235 | 110 | 88 | 235 | 125 | 106 | 364 | 65-165 | 62 | 655 | 1200 | 190 | 4 | 710 | 32000 |
| HCR12CE-125 | 125 | M100x3 | 265 | 125 | 103 | 260 | 135 | 113 | 406.5 | 65-165 | 72 | 950 | 1430 | 200 | 4 | 710 | 46000 |
| HCR12CE-160 | 160 | M125x4 | 326 | 160 | 130 | 310 | 165 | 126 | 488 | 65-192 | 82 | 1370 | 2200 | 250 | 4 | 710 | 82500 |
| HCR12CE-200 | 200 | M160x4 | 418 | 200 | 162 | 390 | 215 | 161 | 620 | 65-192 | 102 | 2120 | 3650 | 320 | 4 | 1500 | 168000 |
Quality Control
Every Unit Inspected Before Shipment
Raw Material Inspection
Material certifications verified. Composition confirmed by spectrometer before machining begins.
Thread Gauge Inspection
100% go/no-go gauge check on all threaded sections. Zero tolerance on dimensional non-conformance.
Load Capacity Test
Static and dynamic load tests run on representative samples from each production batch.
Dimensional Measurement
CMM verification of critical dimensions — ball diameter, bore, thread pitch, and body length.
Surface Inspection
Visual and tactile inspection for burrs, scratches, surface cracks, and plating defects.
Articulation Test
Misalignment angle and torque measured to confirm liner performance meets specification.
Heat Treatment Verify
Hardness tests confirm proper heat treatment on chromoly steel bodies and bearing balls.
Batch Documentation
Full traceability from raw material heat number to finished part. COC and inspection reports available.
Applications
Where Hydraulic Rod End Bearing HCR12CE Rod Ends Are Used
Related Products
All Products →More from the Hydraulic Rod End Bearing HCR12CE Series
Get a Quote
Request a Quote for the Hydraulic Rod End Bearing HCR12CE Series
Share your part number, required quantity, and any special material or packaging requirements. We respond within 24 hours.
Email
⚡ Reply in 24 hrs
🎁 Free samples
🔒 NDA available
📦 MOQ from 50 pcs
FAQ
Hydraulic Rod End Bearing HCR12CE Frequently Asked Questions
Что такое серия HCR12CE?
HCR12CE — метрическая серия род-энд подшипников гидроцилиндров с опубликованными данными по размерам, зазорам, нагрузкам и заказу.
Какие размеры HCR12CE опубликованы?
Опубликованная таблица спецификаций HCR12CE содержит 16 размеров в указанном диапазоне.
Какой материал используется для HCR12CE?
Вкладыш подшипника и внутреннее кольцо: подшипниковая сталь 100Cr6 / AISI 52100, закаленная и шлифованная, с фосфатированием и обработкой дисульфидом молибдена. …
Как осуществляется смазка HCR12CE?
Размер 12 не повторно смазываемый; размеры 16–200 используют гидравлическую масленку DIN 71412.
Какой температурный диапазон указан для HCR12CE?
Страница HCR12CE указывает рабочий диапазон от -50°C до +150°C при заявленной конфигурации материала и смазки.
Что предоставить для коммерческого предложения на HCR12CE?
Укажите требуемый размер, монтажную геометрию со стороны цилиндра или чертеж, информацию о режиме работы и любые требования к смазке или материалу.
