LINKAGE ROD

LCR-169, соединительная тяга 32.75 in, резьба 3/8-24 RH/LH, отверстия 3/8 in, бронзовая обойма

Part No.: LCR-169  ·  Adjustable motion-transfer assembly series
✓ ISO 9001 Certified
✓ SGS Verified
✓ 26+ Years Factory
✓ OEM / ODM Ready

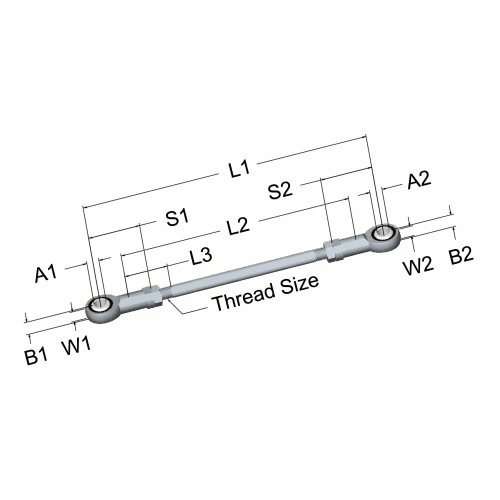

Thread: 3/8-24 RH/LH
Nominal Length: 32.75 in.
L1 Min / Max: 32.126–33.25 in.
A1 / A2: 0.375 / 0.375 in.
B1 / B2: 0.500 / 0.500 in.
W1 / W2: 0.406 / 0.406 in.
Weight
1.36 lbs
Material
Carbon steel; chromoly steel; aluminum alloy steel optional; stainless steel optional
Get a Quote →
Request Free Sample Back to Spec. Page
⚡ Typically responds within 24 hours
MOQ:50 pcs / model
Lead Time:7–15 days
Sample:Free (excl. freight)
Payment:T/T · PayPal · L/C
Обзор

Соединительная тяга — Обзор продукции

LCR-169 — соединительная тяга 32.75 in для регулируемых рычажных механизмов, тяг управления и узлов передачи движения. В конструкции применена резьба 3/8-24 RH/LH с концами под отверстия 3/8 in и сферическими шарнирными головками с бронзовой обоймой. Размерные ссылки: L1 32.126-33.25 in, L2 30.750 in (справочный), L3 2.75 in (типовой), A1/A2 0.375/0.375 in, B1/B2 0.500/0.500 in, S1/S2 1.625/1.625 in, W1/W2 0.406/0.406 in. Варианты материалов: углеродистая сталь, хромомолибденовая сталь (chromoly); опционально — алюминиевый сплав и нержавеющая сталь. При запросе коммерческого предложения согласуйте с SYZ окончательный материал, покрытие, направление резьбы и конфигурацию крепежа.

lcr-169-linkage-connecting-rod-32-75-in-3-8-24-rh-lh-thread-3-8-in-bores-bronze-race
Таблица размеров

Соединительная тяга — Полный диапазон размеров

All available sizes in the Соединительная тяга series. Can’t find your size? Contact us for custom dimensions.

Part NumberWeight (lbs)ThreadNominal LengthL1 MinL1 MaxA1A2B1B2L2 (ref)L3 (typ)S1S2W1W2
LCR-0010.733/8-24 RH/LH15.7513.87517.7500.3750.3750.8750.87513.5002.751.6251.6250.4380.438
LCR-0021.13/8-24 RH/LH27.7525.87529.7500.3750.3750.8750.87525.5002.751.6251.6250.4380.438
LCR-0030.633/8-24 RH/LH9.757.87511.7500.3750.3750.8750.8757.5002.7501.6251.6250.4380.438
LCR-0041.023/8-24 RH/LH22.5020.62524.5000.3750.3750.8750.87520.2502.751.6251.6250.4380.438
LCR-0050.853/8-24 RH/LH12.5011.876130.3750.3750.5000.50010.5002.7501.6251.6250.4060.406
LCR-0060.483/8-24 RH/LH5.755.1266.250.3750.3750.5000.5003.7501.5001.6251.6250.4060.406
LCR-0071.033/8-24 RH/LH16.0014.97616.750.3750.3750.5000.50014.252.751.6251.6250.4060.406
LCR-0081.173/8-24 RH/LH23.7523.12624.250.3750.3750.5000.50021.7502.751.6251.6250.4060.406
LCR-0091.133/8-24 RH/LH20.7520.12621.250.3750.3750.5000.50018.7502.751.6251.6250.4060.406
LCR-0100.453/8-24 RH/LH5.004.55.50.3750.3750.5000.5003.0001.2501.6251.6250.4060.406
LCR-0111.143/8-24 RH/LH21.5020.876220.3750.3750.5000.50019.5002.751.6251.6250.4060.406
LCR-0121.193/8-24 RH/LH27.5026.876280.3750.3750.5000.50025.5002.751.6251.6250.4060.406
LCR-0131.353/8-24 RH/LH31.2530.62631.750.3750.3750.5000.50029.2502.751.6251.6250.4060.406
LCR-0141.183/8-24 RH/LH26.7526.12627.250.3750.3750.5000.50024.7502.751.6251.6250.4060.406
LCR-0150.693/8-24 RH/LH7.256.6267.750.3750.3750.9060.9065.2502.5001.6251.6250.6440.644
LCR-0161.093/8-24 RH/LH20.0019.37620.50.3750.3750.9060.90618.0002.751.6251.6250.6440.644
LCR-0171.483/8-24 RH/LH32.7532.12633.250.3750.3750.9060.90630.7502.751.6251.6250.6440.644
LCR-0180.813/8-24 RH/LH14.7514.12615.250.3750.3750.9060.90612.7502.751.6251.6250.6440.644
LCR-0191.193/8-24 RH/LH26.7526.12627.250.3750.3750.9060.90624.7502.751.6251.6250.6440.644
LCR-0201.071/2-2011.5010.87612.250.5010.5010.6250.6259.0003.252.1252.1250.5000.500
LCR-0211.191/2-207.506.8768.250.5010.5011.1251.1255.0002.252.1252.1250.8750.875
LCR-0222.071/2-2023.5022.87624.250.5010.5011.1251.12521.0003.252.1252.1250.8750.875
LCR-0230.753/8-24 RH/LH16.5014.62518.5000.3750.3750.8750.87514.252.751.6251.6250.4380.438
LCR-0241.143/8-24 RH/LH29.2527.37531.2500.3750.3750.8750.87527.0002.751.6251.6250.4380.438
LCR-0250.653/8-24 RH/LH10.508.62512.5000.3750.3750.8750.8758.2502.7501.6251.6250.4380.438
LCR-0261.043/8-24 RH/LH23.2521.37525.250.3750.3750.8750.87521.0002.751.6251.6250.4380.438
LCR-0270.683/8-24 RH/LH9.508.76100.3750.3750.5000.5007.5002.7501.6251.6250.4060.406
LCR-0280.483/8-24 RH/LH5.755.1266.250.3750.3750.5000.5003.7501.5001.6251.6250.4060.406
LCR-0290.643/8-24 RH/LH8.758.1269.250.3750.3750.5000.5006.7502.7501.6251.6250.4060.406
LCR-0301.133/8-24 RH/LH20.7520.12621.250.3750.3750.5000.50018.7502.751.6251.6250.4060.406
LCR-0311.363/8-24 RH/LH3534.37635.50.3750.3750.5000.50033.0002.751.6251.6250.4060.406
LCR-0320.563/8-24 RH/LH7.256.6267.750.3750.3750.5000.5005.2502.5001.6251.6250.4060.406
LCR-0331.13/8-24 RH/LH18.5017.876190.3750.3750.5000.50016.502.751.6251.6250.4060.406
LCR-0341.343/8-24 RH/LH29.7529.12630.250.3750.3750.5000.50027.7502.751.6251.6250.4060.406
LCR-0351.353/8-24 RH/LH32.0031.37632.500.3750.3750.5000.50030.0002.751.6251.6250.4060.406
LCR-0361.193/8-24 RH/LH27.5026.876280.3750.3750.5000.50025.5002.751.6251.6250.4060.406
LCR-0370.723/8-24 RH/LH8.007.3768.50.3750.3750.9060.9066.0002.7501.6251.6250.6440.644
LCR-0381.113/8-24 RH/LH20.7520.12621.250.3750.3750.9060.90618.7502.751.6251.6250.6440.644
LCR-0391.553/8-24 RH/LH3534.37635.50.3750.3750.9060.90633.0002.751.6251.6250.6440.644
LCR-0400.843/8-24 RH/LH15.5014.876160.3750.3750.9060.90613.5002.751.6251.6250.6440.644
LCR-0411.213/8-24 RH/LH27.5026.876280.3750.3750.9060.90625.5002.751.6251.6250.6440.644
LCR-0421.181/2-2012.5011.87613.250.5010.5010.6250.62510.0003.252.1252.1250.5000.500
LCR-0431.251/2-208.507.8769.2500.5010.5011.1251.1256.0002.752.1252.1250.8750.875
LCR-0442.121/2-2024.5023.87625.250.5010.5011.1251.12522.0003.252.1252.1250.8750.875
LCR-0450.393/8-24 RH/LH6.005.9546.0000.3750.3750.8750.8751.750.6251.6251.6250.4380.438
LCR-0460.783/8-24 RH/LH17.2515.37519.250.3750.3750.8750.87515.0002.751.6251.6250.4380.438
LCR-0471.173/8-24 RH/LH30.0028.12532.0000.3750.3750.8750.87527.7502.751.6251.6250.4380.438
LCR-0480.673/8-24 RH/LH11.319.37513.2500.3750.3750.8750.8759.0002.7501.6251.6250.4380.438
LCR-0491.063/8-24 RH/LH24.0022.12526.0000.3750.3750.8750.87521.7502.751.6251.6250.4380.438
LCR-0501.083/8-24 RH/LH14.0013.37614.50.3750.3750.5000.50012.0002.7501.6251.6250.4060.406
LCR-0510.483/8-24 RH/LH5.755.1266.250.3750.3750.5000.5003.7501.5001.6251.6250.4060.406
LCR-0521.113/8-24 RH/LH19.2518.62619.750.3750.3750.5000.50017.2502.751.6251.6250.4060.406
LCR-0530.63/8-24 RH/LH8.007.3768.50.3750.3750.5000.5006.0002.7501.6251.6250.4060.406
LCR-0541.163/8-24 RH/LH22.2521.62622.750.3750.3750.5000.50020.2502.751.6251.6250.4060.406
LCR-0550.453/8-24 RH/LH5.004.55.50.3750.3750.5000.5003.0001.2501.6251.6250.4060.406
LCR-0561.163/8-24 RH/LH2322.37623.50.3750.3750.5000.50021.0002.751.6251.6250.4060.406
LCR-0571.143/8-24 RH/LH21.5020.876220.3750.3750.5000.50019.5002.751.6251.6250.4060.406
LCR-0581.193/8-24 RH/LH29.0028.37629.50.3750.3750.5000.50027.0002.751.6251.6250.4060.406
LCR-0591.193/8-24 RH/LH29.0028.37629.50.3750.3750.5000.50027.0002.751.6251.6250.4060.406
LCR-0600.743/8-24 RH/LH8.758.1269.250.3750.3750.9060.9066.7502.7501.6251.6250.6440.644
LCR-0611.043/8-24 RH/LH21.5020.876220.3750.3750.9060.90619.5002.751.6251.6250.6440.644
LCR-0621.623/8-24 RH/LH37.2536.62637.750.3750.3750.9060.90635.2502.751.6251.6250.6440.644
LCR-0630.863/8-24 RH/LH16.0014.97616.750.3750.3750.9060.90614.252.751.6251.6250.6440.644
LCR-0641.253/8-24 RH/LH29.0028.37629.50.3750.3750.9060.90627.0002.751.6251.6250.6440.644
LCR-0651.241/2-2013.5012.87614.250.5010.5010.6250.62511.0003.252.1252.1250.5000.500
LCR-0661.311/2-209.508.87610.250.5010.5011.1251.1257.0002.752.1252.1250.8750.875
LCR-0670.413/8-24 RH/LH6.255.9546.5000.3750.3750.8750.8752.2500.7501.6251.6250.4380.438
LCR-0680.83/8-24 RH/LH18.0016.12520.0000.3750.3750.8750.87515.7502.751.6251.6250.4380.438
LCR-0691.193/8-24 RH/LH30.7528.5002.750.3750.3750.8750.87528.5002.751.6251.6250.4380.438
LCR-0700.693/8-24 RH/LH12.7510.87514.7500.3750.3750.8750.8759.7502.7501.6251.6250.4380.438
LCR-0711.093/8-24 RH/LH24.7522.87526.7500.3750.3750.8750.87522.502.751.6251.6250.4380.438
LCR-0720.853/8-24 RH/LH12.5011.876130.3750.3750.5000.50010.5002.7501.6251.6250.4060.406
LCR-0730.63/8-24 RH/LH8.007.3768.50.3750.3750.5000.5006.0002.7501.6251.6250.4060.406
LCR-0740.723/8-24 RH/LH10.259.62610.750.3750.3750.5000.5008.2502.7501.6251.6250.4060.406
LCR-0751.163/8-24 RH/LH22.2521.62622.750.3750.3750.5000.50020.2502.751.6251.6250.4060.406
LCR-0760.433/8-24 RH/LH4.504.54.70.3750.3750.5000.5002.2500.7501.6251.6250.4060.406
LCR-0770.563/8-24 RH/LH7.256.6267.750.3750.3750.5000.5005.2502.5001.6251.6250.4060.406
LCR-0781.143/8-24 RH/LH21.5020.876220.3750.3750.5000.50019.5002.751.6251.6250.4060.406
LCR-0791.163/8-24 RH/LH2322.37623.50.3750.3750.5000.50021.0002.751.6251.6250.4060.406
LCR-0800.943/8-24 RH/LH14.7514.12615.250.3750.3750.5000.50012.7502.751.6251.6250.4060.406
LCR-0811.343/8-24 RH/LH29.7529.12630.250.3750.3750.5000.50027.7502.751.6251.6250.4060.406
LCR-0820.923/8-24 RH/LH9.508.76100.3750.3750.9060.9067.5002.7501.6251.6250.6440.644
LCR-0831.163/8-24 RH/LH22.2521.62622.750.3750.3750.9060.90620.2502.751.6251.6250.6440.644
LCR-0840.483/8-24 RH/LH4.254.2044.30.3750.3750.9060.9061.750.6251.6251.6250.6440.644
LCR-0850.883/8-24 RH/LH17.0016.37617.50.3750.3750.9060.90615.0002.751.6251.6250.6440.644
LCR-0861.273/8-24 RH/LH29.7529.12630.250.3750.3750.9060.90627.7502.751.6251.6250.6440.644
LCR-0871.291/2-2014.5013.87615.250.5010.5010.6250.62512.0003.252.1252.1250.5000.500
LCR-0881.361/2-2010.509.87611.2500.5010.5011.1251.1258.0003.252.1252.1250.8750.875
LCR-0890.433/8-24 RH/LH6.505.95407.25000.3750.3750.8750.8753.0001.2501.6251.6250.4380.438
LCR-0900.823/8-24 RH/LH18.7516.87520.7500.3750.3750.8750.87516.502.751.6251.6250.4380.438
LCR-0911.213/8-24 RH/LH31.5029.62533.5000.3750.3750.8750.87529.2502.751.6251.6250.4380.438
LCR-0920.723/8-24 RH/LH13.2511.37515.2500.3750.3750.8750.87510.5002.7501.6251.6250.4380.438
LCR-0931.113/8-24 RH/LH25.5023.62527.5000.3750.3750.8750.87523.2502.751.6251.6250.4380.438
LCR-0940.683/8-24 RH/LH9.508.76100.3750.3750.5000.5007.5002.7501.6251.6250.4060.406
LCR-0950.643/8-24 RH/LH8.758.1269.250.3750.3750.5000.5006.7502.7501.6251.6250.4060.406
LCR-0961.033/8-24 RH/LH16.0014.97616.750.3750.3750.5000.50014.252.751.6251.6250.4060.406
LCR-0970.643/8-24 RH/LH8.758.1269.250.3750.3750.5000.5006.7502.7501.6251.6250.4060.406
LCR-0981.13/8-24 RH/LH24.5023.876250.3750.3750.5000.50022.502.751.6251.6250.4060.406
LCR-0990.453/8-24 RH/LH5.004.55.50.3750.3750.5000.5003.0001.2501.6251.6250.4060.406
LCR-1000.943/8-24 RH/LH14.7514.12615.250.3750.3750.5000.50012.7502.751.6251.6250.4060.406
LCR-1011.193/8-24 RH/LH29.0028.37629.50.3750.3750.5000.50027.0002.751.6251.6250.4060.406
LCR-1021.343/8-24 RH/LH29.7529.12630.250.3750.3750.5000.50027.7502.751.6251.6250.4060.406
LCR-1031.343/8-24 RH/LH30.5029.876310.3750.3750.5000.50028.5002.751.6251.6250.4060.406
LCR-1040.793/8-24 RH/LH10.259.62610.750.3750.3750.9060.9068.2502.7501.6251.6250.6440.644
LCR-1051.533/8-24 RH/LH2322.37623.50.3750.3750.9060.90621.0002.751.6251.6250.6440.644
LCR-1060.493/8-24 RH/LH4.504.54.70.3750.3750.9060.9062.2500.7501.6251.6250.6440.644
LCR-1070.833/8-24 RH/LH17.7517.12618.250.3750.3750.9060.90615.7502.751.6251.6250.6440.644
LCR-1081.33/8-24 RH/LH30.5029.876310.3750.3750.9060.90628.5002.751.6251.6250.6440.644
LCR-1091.361/2-2015.5014.87616.250.5010.5010.6250.62513.0003.252.1252.1250.5000.500
LCR-1101.361/2-2011.5010.87612.250.5010.5011.1251.1259.0003.252.1252.1250.8750.875
LCR-1110.453/8-24 RH/LH7.005.9548.0000.3750.3750.8750.8753.7501.5001.6251.6250.4380.438
LCR-1120.843/8-24 RH/LH19.5017.62521.5000.3750.3750.8750.87517.2502.751.6251.6250.4380.438
LCR-1131.243/8-24 RH/LH32.2530.37534.2500.3750.3750.8750.87530.0002.751.6251.6250.4380.438
LCR-1140.763/8-24 RH/LH14.2512.37516.2500.3750.3750.8750.87512.0002.7501.6251.6250.4380.438
LCR-1151.133/8-24 RH/LH26.5024.37528.5000.3750.3750.8750.87524.0002.751.6251.6250.4380.438
LCR-1161.083/8-24 RH/LH14.0013.37614.50.3750.3750.5000.50012.0002.7501.6251.6250.4060.406
LCR-1170.723/8-24 RH/LH10.259.62610.750.3750.3750.5000.5008.2502.7501.6251.6250.4060.406
LCR-1181.133/8-24 RH/LH20.7520.12621.250.3750.3750.5000.50018.7502.751.6251.6250.4060.406
LCR-1190.723/8-24 RH/LH10.259.62610.750.3750.3750.5000.5008.2502.7501.6251.6250.4060.406
LCR-1201.443/8-24 RH/LH37.2536.62637.750.3750.3750.5000.50035.2502.751.6251.6250.4060.406
LCR-1210.563/8-24 RH/LH7.256.6267.750.3750.3750.5000.5005.2502.5001.6251.6250.4060.406
LCR-1221.173/8-24 RH/LH25.2524.62625.750.3750.3750.5000.50023.2502.751.6251.6250.4060.406
LCR-1231.343/8-24 RH/LH30.5029.876310.3750.3750.5000.50028.5002.751.6251.6250.4060.406
LCR-1240.993/8-24 RH/LH15.5014.876160.3750.3750.5000.50013.5002.751.6251.6250.4060.406
LCR-1251.353/8-24 RH/LH31.2530.62631.750.3750.3750.5000.50029.2502.751.6251.6250.4060.406
LCR-1260.813/8-24 RH/LH11.0010.37611.50.3750.3750.9060.9069.0002.7501.6251.6250.6440.644
LCR-1271.23/8-24 RH/LH23.7523.12624.250.3750.3750.9060.90621.7502.751.6251.6250.6440.644
LCR-1280.513/8-24 RH/LH5.004.55.50.3750.3750.9060.9063.0001.2501.6251.6250.6440.644
LCR-1290.933/8-24 RH/LH18.5017.876190.3750.3750.9060.90616.502.751.6251.6250.6440.644
LCR-1301.323/8-24 RH/LH31.2530.62631.750.3750.3750.9060.90629.2502.751.6251.6250.6440.644
LCR-1311.41/2-2016.5015.87617.250.5010.5010.6250.62514.0003.252.1252.1250.5000.500
LCR-1321.461/2-2012.5011.87613.250.5010.5011.1251.12510.0003.252.1252.1250.8750.875
LCR-1330.483/8-24 RH/LH7.505.5949.5000.3750.3750.8750.8755.2502.5001.6251.6250.4380.438
LCR-1340.873/8-24 RH/LH20.5018.37522.5000.3750.3750.8750.87518.0002.751.6251.6250.4380.438
LCR-1351.263/8-24 RH/LH33.0031.12535.0000.3750.3750.8750.87530.7502.751.6251.6250.4380.438
LCR-1360.793/8-24 RH/LH15.0013.12517.0000.3750.3750.8750.87512.7502.751.6251.6250.4380.438
LCR-1371.153/8-24 RH/LH27.0025.12529.0000.3750.3750.8750.87524.7502.751.6251.6250.4380.438
LCR-1381.123/8-24 RH/LH20.0019.37620.50.3750.3750.5000.50018.0002.751.6251.6250.4060.406
LCR-1390.63/8-24 RH/LH8.007.3768.50.3750.3750.5000.5006.0002.7501.6251.6250.4060.406
LCR-1401.073/8-24 RH/LH17.0016.37617.50.3750.3750.5000.50015.0002.751.6251.6250.4060.406
LCR-1411.13/8-24 RH/LH24.5023.876250.3750.3750.5000.50022.502.751.6251.6250.4060.406
LCR-1421.173/8-24 RH/LH23.7523.12624.250.3750.3750.5000.50021.7502.751.6251.6250.4060.406
LCR-1430.453/8-24 RH/LH5.004.55.50.3750.3750.5000.5003.0001.2501.6251.6250.4060.406
LCR-1441.183/8-24 RH/LH2625.37626.50.3750.3750.5000.50024.0002.751.6251.6250.4060.406
LCR-1451.343/8-24 RH/LH29.7529.12630.250.3750.3750.5000.50027.7502.751.6251.6250.4060.406
LCR-1461.363/8-24 RH/LH32.7532.12633.250.3750.3750.5000.50030.7502.751.6251.6250.4060.406
LCR-1471.353/8-24 RH/LH32.0031.37632.500.3750.3750.5000.50030.0002.751.6251.6250.4060.406
LCR-1481.033/8-24 RH/LH11.7511.12612.250.3750.3750.9060.9069.7502.7501.6251.6250.6440.644
LCR-1491.233/8-24 RH/LH24.5023.876250.3750.3750.9060.90622.502.751.6251.6250.6440.644
LCR-1500.543/8-24 RH/LH5.755.1266.250.3750.3750.9060.9063.7501.5001.6251.6250.6440.644
LCR-1510.953/8-24 RH/LH19.2518.62619.750.3750.3750.9060.90617.2502.751.6251.6250.6440.644
LCR-1521.343/8-24 RH/LH32.0031.37632.500.3750.3750.9060.90630.0002.751.6251.6250.6440.644
LCR-1531.471/2-2017.5016.87618.2500.5010.5010.6250.62515.0003.252.1252.1250.5000.500
LCR-1541.521/2-2013.5012.87614.250.5010.5011.1251.12511.0003.252.1252.1250.8750.875
LCR-1550.53/8-24 RH/LH8.316.37510.2500.3750.3750.8750.8756.0002.7501.6251.6250.4380.438
LCR-1560.893/8-24 RH/LH21.0019.12523.0000.3750.3750.8750.87518.7502.751.6251.6250.4380.438
LCR-1571.333/8-24 RH/LH35.2533.37537.2500.3750.3750.8750.87533.0002.751.6251.6250.4380.438
LCR-1580.813/8-24 RH/LH15.7513.87517.7500.3750.3750.8750.87513.5002.751.6251.6250.4380.438
LCR-1591.183/8-24 RH/LH27.7525.87529.7500.3750.3750.8750.87525.5002.751.6251.6250.4380.438
LCR-1600.853/8-24 RH/LH12.5011.876130.3750.3750.5000.50010.5002.7501.6251.6250.4060.406
LCR-1610.643/8-24 RH/LH8.758.1269.250.3750.3750.5000.5006.7502.7501.6251.6250.4060.406
LCR-1621.163/8-24 RH/LH22.2521.62622.750.3750.3750.5000.50020.2502.751.6251.6250.4060.406
LCR-1631.173/8-24 RH/LH23.7523.12624.250.3750.3750.5000.50021.7502.751.6251.6250.4060.406
LCR-1640.433/8-24 RH/LH4.504.54.70.3750.3750.5000.5002.2500.7501.6251.6250.4060.406
LCR-1650.563/8-24 RH/LH7.256.6267.750.3750.3750.5000.5005.2502.5001.6251.6250.4060.406
LCR-1661.183/8-24 RH/LH26.7526.12627.250.3750.3750.5000.50024.7502.751.6251.6250.4060.406
LCR-1671.353/8-24 RH/LH31.2530.62631.750.3750.3750.5000.50029.2502.751.6251.6250.4060.406
LCR-1681.343/8-24 RH/LH30.5029.876310.3750.3750.5000.50028.5002.751.6251.6250.4060.406
LCR-1691.363/8-24 RH/LH32.7532.12633.250.3750.3750.5000.50030.7502.751.6251.6250.4060.406
LCR-1701.073/8-24 RH/LH12.5011.876130.3750.3750.9060.90610.5002.7501.6251.6250.6440.644
LCR-1711.253/8-24 RH/LH25.2524.62625.750.3750.3750.9060.90623.2502.751.6251.6250.6440.644
LCR-1720.583/8-24 RH/LH7.256.6267.750.3750.3750.9060.9065.2502.5001.6251.6250.6440.644
LCR-1730.973/8-24 RH/LH20.0019.37620.50.3750.3750.9060.90618.0002.751.6251.6250.6440.644
LCR-1741.373/8-24 RH/LH32.7532.12633.250.3750.3750.9060.90630.7502.751.6251.6250.6440.644
LCR-1751.511/2-2018.5017.87619.2500.5010.5010.6250.62516.0003.252.1252.1250.5000.500
LCR-1761.571/2-2014.5013.87615.250.5010.5011.1251.12512.0003.252.1252.1250.8750.875
LCR-1770.523/8-24 RH/LH9.007.12511.0000.3750.3750.8750.8756.7502.7501.6251.6250.4380.438
LCR-1780.913/8-24 RH/LH21.7519.87523.7500.3750.3750.8750.87519.5002.751.6251.6250.4380.438
LCR-1791.43/8-24 RH/LH37.5035.62539.5000.3750.3750.8750.87535.2502.751.6251.6250.4380.438
LCR-1800.833/8-24 RH/LH16.5014.62518.5000.3750.3750.8750.87514.252.751.6251.6250.4380.438
LCR-1811.223/8-24 RH/LH29.2527.37531.2500.3750.3750.8750.87527.0002.751.6251.6250.4380.438
LCR-1821.123/8-24 RH/LH20.0019.37620.50.3750.3750.5000.50018.0002.751.6251.6250.4060.406
LCR-1831.073/8-24 RH/LH17.0016.37617.50.3750.3750.5000.50015.0002.751.6251.6250.4060.406
LCR-1840.83/8-24 RH/LH11.7511.12612.250.3750.3750.5000.5009.7502.7501.6251.6250.4060.406
LCR-1851.363/8-24 RH/LH3534.37635.50.3750.3750.5000.50033.0002.751.6251.6250.4060.406
LCR-1861.093/8-24 RH/LH17.7517.12618.250.3750.3750.5000.50015.7502.751.6251.6250.4060.406
LCR-1870.763/8-24 RH/LH11.0010.37611.50.3750.3750.5000.5009.0002.7501.6251.6250.4060.406
LCR-1881.163/8-24 RH/LH2322.37623.50.3750.3750.5000.50021.0002.751.6251.6250.4060.406
LCR-1890.763/8-24 RH/LH11.0010.37611.50.3750.3750.5000.5009.0002.7501.6251.6250.4060.406
LCR-1901.13/8-24 RH/LH18.5017.876190.3750.3750.5000.50016.502.751.6251.6250.4060.406
LCR-1910.423/8-24 RH/LH4.254.2044.30.3750.3750.5000.5001.750.6251.6251.6250.4060.406
LCR-1921.273/8-24 RH/LH14.0013.37614.50.3750.3750.9060.90612.0002.7501.6251.6250.6440.644
LCR-1931.273/8-24 RH/LH2625.37626.50.3750.3750.9060.90624.0002.751.6251.6250.6440.644
LCR-1940.613/8-24 RH/LH8.007.3768.50.3750.3750.9060.9066.0002.7501.6251.6250.6440.644
LCR-19513/8-24 RH/LH20.7520.12621.250.3750.3750.9060.90618.7502.751.6251.6250.6440.644
LCR-1961.443/8-24 RH/LH3534.37635.50.3750.3750.9060.90633.0002.751.6251.6250.6440.644
LCR-1971.581/2-2019.5018.87620.250.5010.5010.6250.62517.0003.252.1252.1250.5000.500
LCR-1981.641/2-2015.5014.87616.250.5010.5011.1251.12513.0003.252.1252.1250.8750.875
LCR-1990.553/8-24 RH/LH9.757.87511.7500.3750.3750.8750.8757.5002.7501.6251.6250.4380.438
LCR-2000.943/8-24 RH/LH22.5020.62524.5000.3750.3750.8750.87520.2502.751.6251.6250.4380.438
LCR-2010.473/8-24 RH/LH6.005.9546.0000.3750.3750.8750.8751.750.6251.6251.6250.4380.438
LCR-2020.863/8-24 RH/LH17.2515.37519.250.3750.3750.8750.87515.0002.751.6251.6250.4380.438
LCR-2031.253/8-24 RH/LH30.0028.12532.0000.3750.3750.8750.87527.7502.751.6251.6250.4380.438
LCR-2040.683/8-24 RH/LH9.508.76100.3750.3750.5000.5007.5002.7501.6251.6250.4060.406
LCR-2050.723/8-24 RH/LH10.259.62610.750.3750.3750.5000.5008.2502.7501.6251.6250.4060.406
LCR-2061.133/8-24 RH/LH20.7520.12621.250.3750.3750.5000.50018.7502.751.6251.6250.4060.406
LCR-2071.073/8-24 RH/LH17.0016.37617.50.3750.3750.5000.50015.0002.751.6251.6250.4060.406
LCR-2081.093/8-24 RH/LH17.7517.12618.250.3750.3750.5000.50015.7502.751.6251.6250.4060.406
LCR-2090.763/8-24 RH/LH11.0010.37611.50.3750.3750.5000.5009.0002.7501.6251.6250.4060.406
LCR-2100.993/8-24 RH/LH15.5014.876160.3750.3750.5000.50013.5002.751.6251.6250.4060.406
LCR-2111.173/8-24 RH/LH25.2524.62625.750.3750.3750.5000.50023.2502.751.6251.6250.4060.406
LCR-2121.353/8-24 RH/LH31.2530.62631.750.3750.3750.5000.50029.2502.751.6251.6250.4060.406
LCR-2130.423/8-24 RH/LH4.254.2044.30.3750.3750.5000.5001.750.6251.6251.6250.4060.406
LCR-2140.923/8-24 RH/LH14.7514.12615.250.3750.3750.9060.90612.7502.751.6251.6250.6440.644
LCR-2151.33/8-24 RH/LH26.7526.12627.250.3750.3750.9060.90624.7502.751.6251.6250.6440.644
LCR-2160.633/8-24 RH/LH8.758.1269.250.3750.3750.9060.9066.7502.7501.6251.6250.6440.644
LCR-2170.923/8-24 RH/LH21.5020.876220.3750.3750.9060.90619.5002.751.6251.6250.6440.644
LCR-2181.513/8-24 RH/LH37.2536.62637.750.3750.3750.9060.90635.2502.751.6251.6250.6440.644
LCR-2191.621/2-2020.5019.87621.250.5010.5010.6250.62518.0003.252.1252.1250.5000.500
LCR-2201.681/2-2016.5015.87617.250.5010.5011.1251.12514.0003.252.1252.1250.8750.875
LCR-2210.573/8-24 RH/LH10.508.62512.5000.3750.3750.8750.8758.2502.7501.6251.6250.4380.438
LCR-2220.963/8-24 RH/LH23.2521.37525.250.3750.3750.8750.87521.0002.751.6251.6250.4380.438
LCR-2230.493/8-24 RH/LH6.255.9546.5000.3750.3750.8750.8752.2500.7501.6251.6250.4380.438
LCR-2240.883/8-24 RH/LH18.0016.12520.0000.3750.3750.8750.87515.7502.751.6251.6250.4380.438
LCR-2251.273/8-24 RH/LH30.7528.5002.750.3750.3750.8750.87528.5002.751.6251.6250.4380.438
LCR-2261.083/8-24 RH/LH14.0013.37614.50.3750.3750.5000.50012.0002.7501.6251.6250.4060.406
LCR-2270.483/8-24 RH/LH5.755.1266.250.3750.3750.5000.5003.7501.5001.6251.6250.4060.406
LCR-2281.13/8-24 RH/LH24.5023.876250.3750.3750.5000.50022.502.751.6251.6250.4060.406
LCR-2290.83/8-24 RH/LH11.7511.12612.250.3750.3750.5000.5009.7502.7501.6251.6250.4060.406
LCR-2300.433/8-24 RH/LH4.504.54.70.3750.3750.5000.5002.2500.7501.6251.6250.4060.406
LCR-2310.943/8-24 RH/LH14.7514.12615.250.3750.3750.5000.50012.7502.751.6251.6250.4060.406
LCR-2321.193/8-24 RH/LH27.5026.876280.3750.3750.5000.50025.5002.751.6251.6250.4060.406
LCR-2331.183/8-24 RH/LH2625.37626.50.3750.3750.5000.50024.0002.751.6251.6250.4060.406
LCR-2341.353/8-24 RH/LH32.0031.37632.500.3750.3750.5000.50030.0002.751.6251.6250.4060.406
LCR-2350.423/8-24 RH/LH4.254.2044.30.3750.3750.5000.5001.750.6251.6251.6250.4060.406
LCR-2360.953/8-24 RH/LH15.5014.876160.3750.3750.9060.90613.5002.751.6251.6250.6440.644
LCR-2371.323/8-24 RH/LH27.5026.876280.3750.3750.9060.90625.5002.751.6251.6250.6440.644
LCR-2380.813/8-24 RH/LH9.508.76100.3750.3750.9060.9067.5002.7501.6251.6250.6440.644
LCR-2391.053/8-24 RH/LH22.2521.62622.750.3750.3750.9060.90620.2502.751.6251.6250.6440.644
LCR-2400.81/2-206.005.756.250.5010.5010.6250.6253.0001.2502.1252.1250.5000.500
LCR-2411.691/2-2021.5020.87622.250.5010.5010.6250.62519.0003.252.1252.1250.5000.500
LCR-2421.751/2-2017.5016.87618.2500.5010.5011.1251.12515.0003.252.1252.1250.8750.875
LCR-2430.593/8-24 RH/LH11.319.37513.2500.3750.3750.8750.8759.0002.7501.6251.6250.4380.438
LCR-2440.983/8-24 RH/LH24.0022.12526.0000.3750.3750.8750.87521.7502.751.6251.6250.4380.438
LCR-2450.513/8-24 RH/LH6.505.95407.25000.3750.3750.8750.8753.0001.2501.6251.6250.4380.438
LCR-2460.93/8-24 RH/LH18.7516.87520.7500.3750.3750.8750.87516.502.751.6251.6250.4380.438
LCR-2471.293/8-24 RH/LH31.5029.62533.5000.3750.3750.8750.87529.2502.751.6251.6250.4380.438
LCR-2481.123/8-24 RH/LH20.0019.37620.50.3750.3750.5000.50018.0002.751.6251.6250.4060.406
LCR-2490.83/8-24 RH/LH11.7511.12612.250.3750.3750.5000.5009.7502.7501.6251.6250.4060.406
LCR-2501.113/8-24 RH/LH19.2518.62619.750.3750.3750.5000.50017.2502.751.6251.6250.4060.406
LCR-2511.363/8-24 RH/LH3534.37635.50.3750.3750.5000.50033.0002.751.6251.6250.4060.406
LCR-2521.363/8-24 RH/LH3534.37635.50.3750.3750.5000.50033.0002.751.6251.6250.4060.406
LCR-2530.993/8-24 RH/LH15.5014.876160.3750.3750.5000.50013.5002.751.6251.6250.4060.406
LCR-2541.173/8-24 RH/LH25.2524.62625.750.3750.3750.5000.50023.2502.751.6251.6250.4060.406
LCR-2551.183/8-24 RH/LH26.7526.12627.250.3750.3750.5000.50024.7502.751.6251.6250.4060.406
LCR-2561.143/8-24 RH/LH21.5020.876220.3750.3750.5000.50019.5002.751.6251.6250.4060.406
LCR-2570.423/8-24 RH/LH4.254.2044.30.3750.3750.5000.5001.750.6251.6251.6250.4060.406
LCR-2580.973/8-24 RH/LH16.0014.97616.750.3750.3750.9060.90614.252.751.6251.6250.6440.644
LCR-2591.363/8-24 RH/LH29.0028.37629.50.3750.3750.9060.90627.0002.751.6251.6250.6440.644
LCR-2600.683/8-24 RH/LH10.259.62610.750.3750.3750.9060.9068.2502.7501.6251.6250.6440.644
LCR-2611.423/8-24 RH/LH2322.37623.50.3750.3750.9060.90621.0002.751.6251.6250.6440.644
LCR-2620.861/2-206.505.8767.250.5010.5010.6250.6254.0001.752.1252.1250.5000.500
LCR-2631.731/2-2022.5021.87623.250.5010.5010.6250.62520.0003.252.1252.1250.5000.500
LCR-2641.791/2-2018.5017.87619.2500.5010.5011.1251.12516.0003.252.1252.1250.8750.875
LCR-2650.613/8-24 RH/LH12.7510.87514.7500.3750.3750.8750.8759.7502.7501.6251.6250.4380.438
LCR-2661.013/8-24 RH/LH24.7522.87526.7500.3750.3750.8750.87522.502.751.6251.6250.4380.438
LCR-2670.533/8-24 RH/LH7.005.9548.0000.3750.3750.8750.8753.7501.5001.6251.6250.4380.438
LCR-2680.923/8-24 RH/LH19.5017.62521.5000.3750.3750.8750.87517.2502.751.6251.6250.4380.438
LCR-2691.323/8-24 RH/LH32.2530.37534.2500.3750.3750.8750.87530.0002.751.6251.6250.4380.438
LCR-2700.853/8-24 RH/LH12.5011.876130.3750.3750.5000.50010.5002.7501.6251.6250.4060.406
LCR-2711.113/8-24 RH/LH19.2518.62619.750.3750.3750.5000.50017.2502.751.6251.6250.4060.406
LCR-2721.173/8-24 RH/LH23.7523.12624.250.3750.3750.5000.50021.7502.751.6251.6250.4060.406
LCR-2731.443/8-24 RH/LH37.2536.62637.750.3750.3750.5000.50035.2502.751.6251.6250.4060.406
LCR-2741.093/8-24 RH/LH17.7517.12618.250.3750.3750.5000.50015.7502.751.6251.6250.4060.406
LCR-2750.943/8-24 RH/LH14.7514.12615.250.3750.3750.5000.50012.7502.751.6251.6250.4060.406
LCR-2761.183/8-24 RH/LH2625.37626.50.3750.3750.5000.50024.0002.751.6251.6250.4060.406
LCR-2771.353/8-24 RH/LH32.0031.37632.500.3750.3750.5000.50030.0002.751.6251.6250.4060.406
LCR-2781.163/8-24 RH/LH2322.37623.50.3750.3750.5000.50021.0002.751.6251.6250.4060.406
LCR-2790.593/8-24 RH/LH4.254.2044.30.3750.3750.9060.9061.750.6251.6251.6250.6440.644
LCR-2800.993/8-24 RH/LH17.0016.37617.50.3750.3750.9060.90615.0002.751.6251.6250.6440.644
LCR-2811.393/8-24 RH/LH29.7529.12630.250.3750.3750.9060.90627.7502.751.6251.6250.6440.644
LCR-2820.73/8-24 RH/LH11.0010.37611.50.3750.3750.9060.9069.0002.7501.6251.6250.6440.644
LCR-2831.093/8-24 RH/LH23.7523.12624.250.3750.3750.9060.90621.7502.751.6251.6250.6440.644
LCR-2840.911/2-207.506.8768.250.5010.5010.6250.6255.0002.252.1252.1250.5000.500
LCR-2851.781/2-2023.5022.87624.250.5010.5010.6250.62521.0003.252.1252.1250.5000.500
LCR-2861.871/2-2019.5018.87620.250.5010.5011.1251.12517.0003.252.1252.1250.8750.875
LCR-2870.643/8-24 RH/LH13.2511.37515.2500.3750.3750.8750.87510.5002.7501.6251.6250.4380.438
LCR-2881.033/8-24 RH/LH25.5023.62527.5000.3750.3750.8750.87523.2502.751.6251.6250.4380.438
LCR-2890.563/8-24 RH/LH7.505.5949.5000.3750.3750.8750.8755.2502.5001.6251.6250.4380.438
LCR-2900.953/8-24 RH/LH20.5018.37522.5000.3750.3750.8750.87518.0002.751.6251.6250.4380.438
LCR-2911.343/8-24 RH/LH33.0031.12535.0000.3750.3750.8750.87530.7502.751.6251.6250.4380.438
LCR-2920.683/8-24 RH/LH9.508.76100.3750.3750.5000.5007.5002.7501.6251.6250.4060.406
LCR-2931.073/8-24 RH/LH17.0016.37617.50.3750.3750.5000.50015.0002.751.6251.6250.4060.406
LCR-2941.163/8-24 RH/LH22.2521.62622.750.3750.3750.5000.50020.2502.751.6251.6250.4060.406
LCR-2951.113/8-24 RH/LH19.2518.62619.750.3750.3750.5000.50017.2502.751.6251.6250.4060.406
LCR-2961.443/8-24 RH/LH37.2536.62637.750.3750.3750.5000.50035.2502.751.6251.6250.4060.406
LCR-2971.13/8-24 RH/LH18.5017.876190.3750.3750.5000.50016.502.751.6251.6250.4060.406
LCR-2981.183/8-24 RH/LH26.7526.12627.250.3750.3750.5000.50024.7502.751.6251.6250.4060.406
LCR-2991.343/8-24 RH/LH30.5029.876310.3750.3750.5000.50028.5002.751.6251.6250.4060.406
LCR-3001.363/8-24 RH/LH32.7532.12633.250.3750.3750.5000.50030.7502.751.6251.6250.4060.406
LCR-3010.63/8-24 RH/LH4.504.54.70.3750.3750.9060.9062.2500.7501.6251.6250.6440.644
LCR-3020.943/8-24 RH/LH17.7517.12618.250.3750.3750.9060.90615.7502.751.6251.6250.6440.644
LCR-3031.413/8-24 RH/LH30.5029.876310.3750.3750.9060.90628.5002.751.6251.6250.6440.644
LCR-3040.923/8-24 RH/LH11.7511.12612.250.3750.3750.9060.9069.7502.7501.6251.6250.6440.644
LCR-3051.123/8-24 RH/LH24.5023.876250.3750.3750.9060.90622.502.751.6251.6250.6440.644
LCR-3060.971/2-208.507.8769.2500.5010.5010.6250.6256.0002.752.1252.1250.5000.500
LCR-3071.831/2-2024.5023.87625.250.5010.5010.6250.62522.0003.252.1252.1250.5000.500
LCR-3081.91/2-2020.5019.87621.250.5010.5011.1251.12518.0003.252.1252.1250.8750.875
LCR-3090.683/8-24 RH/LH14.2512.37516.2500.3750.3750.8750.87512.0002.7501.6251.6250.4380.438
LCR-3101.053/8-24 RH/LH26.5024.37528.5000.3750.3750.8750.87524.0002.751.6251.6250.4380.438
LCR-3110.583/8-24 RH/LH8.316.37510.2500.3750.3750.8750.8756.0002.7501.6251.6250.4380.438
LCR-3120.973/8-24 RH/LH21.0019.12523.0000.3750.3750.8750.87518.7502.751.6251.6250.4380.438
LCR-3131.413/8-24 RH/LH35.2533.37537.2500.3750.3750.8750.87533.0002.751.6251.6250.4380.438
LCR-3141.083/8-24 RH/LH14.0013.37614.50.3750.3750.5000.50012.0002.7501.6251.6250.4060.406
LCR-3150.83/8-24 RH/LH11.7511.12612.250.3750.3750.5000.5009.7502.7501.6251.6250.4060.406
LCR-3161.033/8-24 RH/LH16.0014.97616.750.3750.3750.5000.50014.252.751.6251.6250.4060.406
LCR-3171.033/8-24 RH/LH16.0014.97616.750.3750.3750.5000.50014.252.751.6251.6250.4060.406
LCR-3180.433/8-24 RH/LH4.504.54.70.3750.3750.5000.5002.2500.7501.6251.6250.4060.406
LCR-3190.993/8-24 RH/LH15.5014.876160.3750.3750.5000.50013.5002.751.6251.6250.4060.406
LCR-3201.13/8-24 RH/LH18.5017.876190.3750.3750.5000.50016.502.751.6251.6250.4060.406
LCR-3211.193/8-24 RH/LH27.5026.876280.3750.3750.5000.50025.5002.751.6251.6250.4060.406
LCR-3221.173/8-24 RH/LH25.2524.62625.750.3750.3750.5000.50023.2502.751.6251.6250.4060.406
LCR-3230.633/8-24 RH/LH5.004.55.50.3750.3750.9060.9063.0001.2501.6251.6250.6440.644
LCR-3241.043/8-24 RH/LH18.5017.876190.3750.3750.9060.90616.502.751.6251.6250.6440.644
LCR-3251.433/8-24 RH/LH31.2530.62631.750.3750.3750.9060.90629.2502.751.6251.6250.6440.644
LCR-3260.963/8-24 RH/LH12.5011.876130.3750.3750.9060.90610.5002.7501.6251.6250.6440.644
LCR-3271.143/8-24 RH/LH25.2524.62625.750.3750.3750.9060.90623.2502.751.6251.6250.6440.644
LCR-3281.031/2-209.508.87610.250.5010.5010.6250.6257.0002.752.1252.1250.5000.500
LCR-3291.081/2-206.005.756.250.5010.5011.1251.1253.0001.2502.1252.1250.8750.875
LCR-3301.981/2-2021.5020.87622.250.5010.5011.1251.12519.0003.252.1252.1250.8750.875
LCR-3310.713/8-24 RH/LH15.0013.12517.0000.3750.3750.8750.87512.7502.751.6251.6250.4380.438
LCR-3321.073/8-24 RH/LH27.0025.12529.0000.3750.3750.8750.87524.7502.751.6251.6250.4380.438
LCR-3330.63/8-24 RH/LH9.007.12511.0000.3750.3750.8750.8756.7502.7501.6251.6250.4380.438
LCR-3340.993/8-24 RH/LH21.7519.87523.7500.3750.3750.8750.87519.5002.751.6251.6250.4380.438
LCR-3351.483/8-24 RH/LH37.5035.62539.5000.3750.3750.8750.87535.2502.751.6251.6250.4380.438
LCR-3361.123/8-24 RH/LH20.0019.37620.50.3750.3750.5000.50018.0002.751.6251.6250.4060.406
LCR-3370.63/8-24 RH/LH8.007.3768.50.3750.3750.5000.5006.0002.7501.6251.6250.4060.406
LCR-3381.13/8-24 RH/LH24.5023.876250.3750.3750.5000.50022.502.751.6251.6250.4060.406
LCR-3391.443/8-24 RH/LH37.2536.62637.750.3750.3750.5000.50035.2502.751.6251.6250.4060.406
LCR-3401.093/8-24 RH/LH17.7517.12618.250.3750.3750.5000.50015.7502.751.6251.6250.4060.406
LCR-3410.763/8-24 RH/LH11.0010.37611.50.3750.3750.5000.5009.0002.7501.6251.6250.4060.406
LCR-3421.193/8-24 RH/LH29.0028.37629.50.3750.3750.5000.50027.0002.751.6251.6250.4060.406
LCR-3431.363/8-24 RH/LH32.7532.12633.250.3750.3750.5000.50030.7502.751.6251.6250.4060.406
LCR-3441.183/8-24 RH/LH2625.37626.50.3750.3750.5000.50024.0002.751.6251.6250.4060.406
LCR-3450.653/8-24 RH/LH5.755.1266.250.3750.3750.9060.9063.7501.5001.6251.6250.6440.644
LCR-3461.063/8-24 RH/LH19.2518.62619.750.3750.3750.9060.90617.2502.751.6251.6250.6440.644
LCR-3471.453/8-24 RH/LH32.0031.37632.500.3750.3750.9060.90630.0002.751.6251.6250.6440.644
LCR-3481.163/8-24 RH/LH14.0013.37614.50.3750.3750.9060.90612.0002.7501.6251.6250.6440.644
LCR-3491.163/8-24 RH/LH2625.37626.50.3750.3750.9060.90624.0002.751.6251.6250.6440.644
LCR-3501.071/2-2010.509.87611.2500.5010.5010.6250.6258.0003.252.1252.1250.5000.500
LCR-3511.141/2-206.505.8767.250.5010.5011.1251.1254.0001.752.1252.1250.8750.875
LCR-3522.011/2-2022.5021.87623.250.5010.5011.1251.12520.0003.252.1252.1250.8750.875
Контроль качества

Каждое изделие проверяется перед отгрузкой

🔩

Raw Material Inspection

Material certifications verified. Composition confirmed by spectrometer before machining begins.

🔍

Thread Gauge Inspection

100% go/no-go gauge check on all threaded sections. Zero tolerance on dimensional non-conformance.

⚖️

Load Capacity Test

Static and dynamic load tests run on representative samples from each production batch.

📏

Dimensional Measurement

CMM verification of critical dimensions — ball diameter, bore, thread pitch, and body length.

🔬

Surface Inspection

Visual and tactile inspection for burrs, scratches, surface cracks, and plating defects.

🔄

Articulation Test

Misalignment angle and torque measured to confirm liner performance meets specification.

🏆

Heat Treatment Verify

Hardness tests confirm proper heat treatment on chromoly steel bodies and bearing balls.

📋

Batch Documentation

Full traceability from raw material heat number to finished part. COC and inspection reports available.

Applications

Where Linkage Rods Are Used

Mechanical Control Linkages

Connecting rods transfer motion between levers, shafts, actuators, and control arms while rod ends accommodate angular change at each attachment. Match overall length and end geometry to the mechanism.

Steering, Suspension & Stabilizer Systems

Preassembled or fabricated linkage rods can be used in steering and suspension systems where accurate length and repeatable end connections are important. Check joint orientation and travel before final tightening.

Agricultural and Industrial Equipment

Longer linkage assemblies are common in machine controls, agricultural mechanisms, and industrial equipment. Select the race and rod-end material for the expected oscillation, contamination, load, and maintenance plan.

Похожие продукты

Ещё из серии Соединительная тяга Series

All Products →
lcr-345-linkage-connecting-rod-5-75-in-3-8-24-rh-lh-thread-3-8-24-rod-end-stud-threads-nylon-race

LCR-345, соединительная тяга 5.75 in, резьба 3/8-24 RH/LH, резьба пальцев 3/8-24, нейлоновая обойма

LCR-345

View Product →
lcr-344-linkage-connecting-rod-26-00-in-3-8-24-rh-lh-thread-3-8-in-bores-bronze-race

LCR-344, соединительная тяга 26.00 in, резьба 3/8-24 RH/LH, отверстия 3/8 in, бронзовая обойма

LCR-344

View Product →
lcr-343-linkage-connecting-rod-32-75-in-3-8-24-rh-lh-thread-3-8-in-bores-steel-race

LCR-343, соединительная тяга 32.75 in, резьба 3/8-24 RH/LH, отверстия 3/8 in, стальная обойма

LCR-343

View Product →
lcr-342-linkage-connecting-rod-29-00-in-3-8-24-rh-lh-thread-3-8-in-bores-steel-race

LCR-342, соединительная тяга 29.00 in, резьба 3/8-24 RH/LH, отверстия 3/8 in, стальная обойма

LCR-342

View Product →
Запросить цену

Запросить цену на серию Соединительная тяга

Share your part number, required quantity, and any special material or packaging requirements. We respond within 24 hours.

✉
⚡ Reply in 24 hrs
🎁 Free samples
🔒 NDA available
📦 MOQ from 50 pcs
Optional: JPG, PNG, WEBP, GIF or ZIP; up to 5 files and 20 MB total.
FAQ

Соединительная тяга Часто задаваемые вопросы о

Для чего используется соединительная тяга LCR-169?

LCR-169 — тяга с номинальной длиной 32.75 in для регулируемых механических приводов, тяг управления и узлов передачи движения, с резьбовой центральной секцией 3/8-24 RH/LH и отверстием 3/8 in на каждом конце под сферический шарнир с бронзовой обоймой, что позволяет точно настраивать установочную длину при свободном повороте каждого конца.

Каковы размеры L1, L2 и L3 на тяге LCR-169?

LCR-169 имеет общий диапазон регулировки L1 от 32.126 до 33.25 in при опорной длине L2 30.750 in и типовом размере L3 2.75 in, что дает примерно 1.1 in суммарной регулировки длины за счет резьбовой центральной секции 3/8-24 RH/LH.

Какие шарнирные головки используются в тяге LCR-169?

Каждый конец LCR-169 имеет отверстие 3/8 in под сферический шарнир с бронзовой обоймой: тяга поворачивается в каждой шарнирной точке, а резьбовая центральная секция 3/8-24 RH/LH задает установочную длину.

В каких вариантах материала доступна тяга LCR-169?

Стандартное исполнение — углеродистая сталь. Также предлагается хромомолибденовая сталь; алюминиевый сплав и нержавеющая сталь доступны как опциональные материалы — согласуйте материал, покрытие и направление резьбы с SYZ перед заказом.

Регулируется ли тяга LCR-169, как стяжная муфта?

Да. Поскольку в конфигурации 3/8-24 RH/LH правая резьба на одном конце сочетается с левой на другом, вращение центрального корпуса изменяет установочную длину по принципу стяжной муфты, без отвинчивания любого из концов.

Может ли тяга LCR-169 быть изготовлена на заказ для OEM-проекта тягового механизма?

Да. Для OEM-проектов и заказных приводов SYZ может изменить номинальную длину, размер/направление резьбы, тип концов и материал — укажите целевой диапазон L1 и монтажную резьбу при запросе цены на LCR-169.

LCR-169, соединительная тяга 32.75 in, резьба 3/8-24 RH/LH, отверстия 3/8 in, бронзовая обойма
Соединительная тяга · LCR-169
50 pcs
Min. Order
Free Sample Get a Quote →
🍪
We Use Cookies
