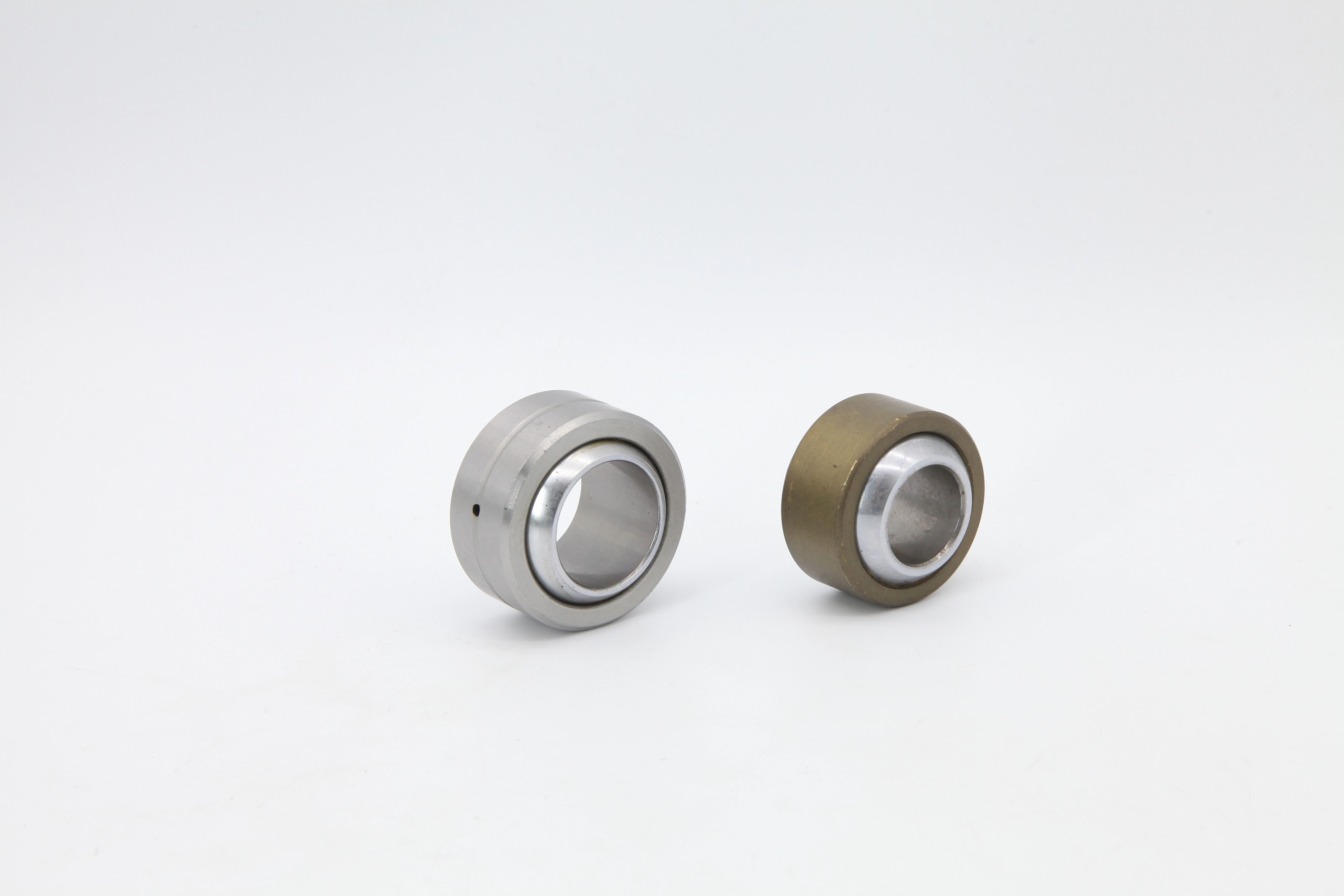

WPB-T — Inch Wide Series Spherical Bearings

Широкая обойма для более высокой нагрузки и угла при малом отверстии
Inch Wide Series Spherical Bearings

PTFE Lined Alloy Steel Race · Stainless Optional · Staking Groove Variant Available

Полный диапазон спецификаций

Image Views Included

Любой B

Любой N

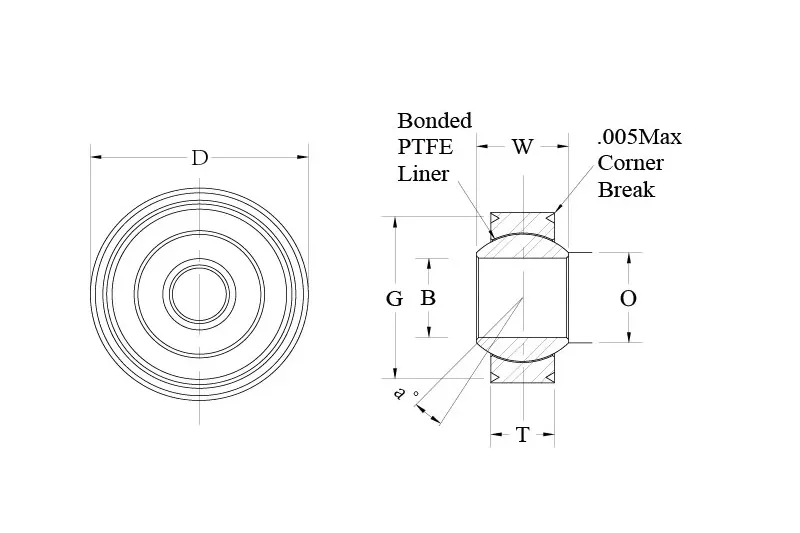

B DIA.

D DIA.

Полиуретан

Полиуретан	B DIA.+.0000 -.0005	D DIA.+.0000 -.0005	W WIDTH+.000 -.002	T WIDTH+.005 -.005	O FLAT DIA.ДЛИНА	M CHAMFERДЛИНА	a°REF. Статич.	STATICRADIAL LOAD ПРИБЛ.	WEIGHTКол-во ПРИБЛ.
WPB4T	0.2500	0.6250	0.437	0.327	0.300	0.022	15.0	5,500	0.031
WPB5T	0.3125	0.6875	0.437	0.317	0.360	0.032	14.0	9,400	0.035
WPB6T	0.3750	0.8125	0.500	0.406	0.466	0.032	8.0	13,700	0.060
WPB7T	0.4375	0.9375	0.562	0.442	0.537	0.032	10.0	20,700	0.080
WPB9T	0.5625	1.1250	0.687	0.536	0.721	0.032	10.0	26,600	0.135
WPB10T	0.6250	1.1875	0.750	0.567	0.752	0.032	12.0	29,000	0.160
Широкая — подшипники WPB	0.7500	1.3750	0.875	0.630	0.845	0.044	13.0	37,000	0.240
WPB14T	0.8750	1.6250	0.875	0.755	0.995	0.044	6.0	65,200	0.350

Литьевой, армированный нейлон с PTFE. 52100 bearing steel, precision ground, heat treated, and hard chrome plated. Stainless steel optional.
Хромомолибденовая сталь 4130, термообработка, твердое хромирование. Alloy steel, heat treated, PTFE lined, and oil coated. Stainless steel optional, zinc plated optional.
Доступные конфигурации шпилек: PTFE lined race construction for low-friction articulation in wide-series spherical bearing positions.
Construction: WPB-T is the inch wide-series spherical bearing family, with staking groove variants available as WPB-TG.

Staking groove version: use part numbers in the WPB-TG series.
Stainless race and stainless ball: add -SS to the suffix, for example WPB12T-SS.
Stainless race and steel ball: add -S to the suffix, for example WPB12T-S.
Accessories: alloy steel uniball cups are available in the UBC series.
